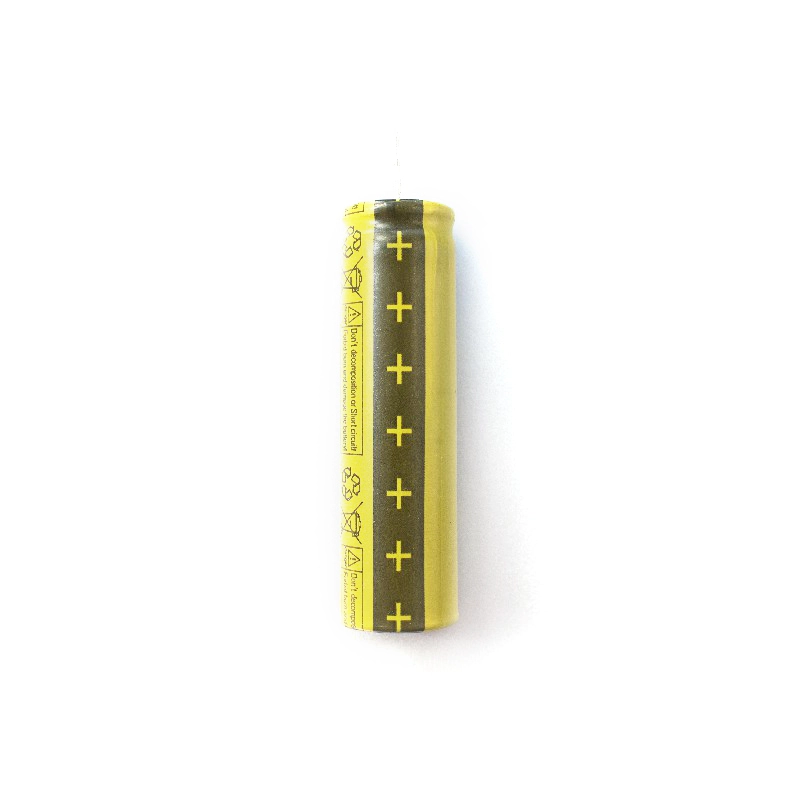

Super capacitive lithium titanate battery HTC1865

● Huahui Energy HTC series batteries are high rate lithium titanate batteries. HTC means High rate Titanate Cell.

● HTC1865 Super capacitive lithium titanate battery can be used in ultra-low temperature and relative high temperature. And it has good performance and consistency.



● Battery size: 18mm diameter, 65mm height.

● Battery applications: Battery pack, IoT products, Vehicle safety box, Battery applications in extreme environments, etc

    oops...!

    no product data.

    Go to homepage

    Product parameters

    Item

    General Parameter

    Remark

    Rated Capacity

    Typical

    1300mAh

    Standard discharge  after
    Standard charge

    Minimum

    1280mAh

    Nominal Voltage

    2.4V

    Mean Operation Voltage

    Internal Impedance

    ≤30m Ω

    Charged to about 70%of capacity

    Standard charge

    Constant Current 1300mA
    end Voltage 2.80V
    26mA cut-off

    Charge time:Approx 1.5h

    Standard discharge

    Constant current 1300mA
    end voltage 1.6V



    Fast charge

    Constant Current 2600mA
    end Voltage 2.80V
    26mA cut-off

    Charge time:Approx 0.8h

    Maximum Continuous
    Discharge Current

    13A



    Operation Temperature Range

    Charge   :-30~60℃

    60±25%R.H.
    Bare Cell

    Discharge   :-40~70℃

    Storage Temperature Range

    Less than 1 year:-10~20℃

    60±25%R.H.
    at the shipment state

    less than 3 months:-10~45℃
