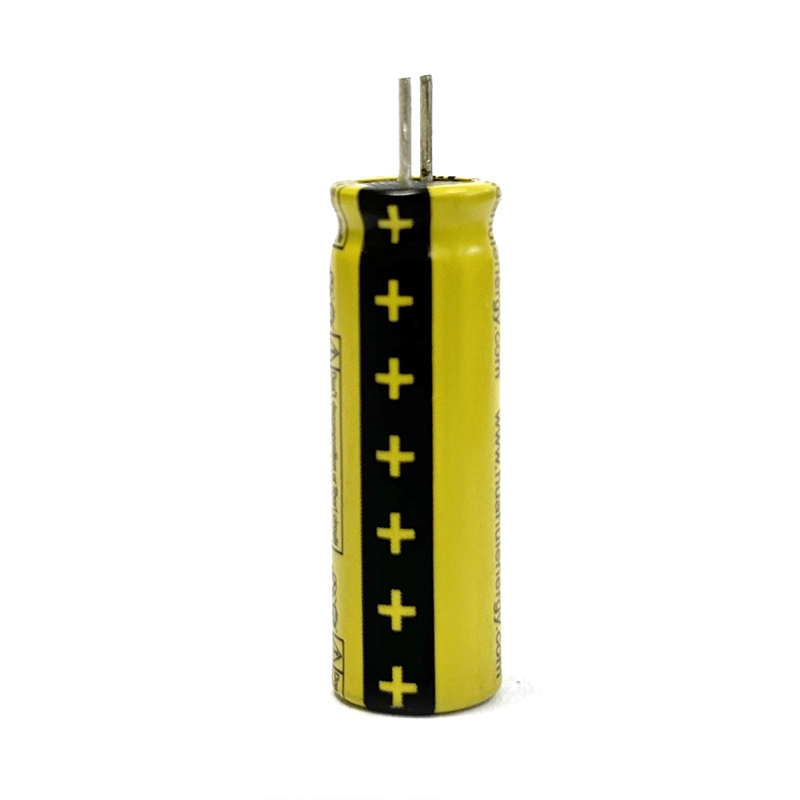

● Huahui New Energy cost-effective super long cycle life distinguished performance 2.4v 100mAh 1030 lithium titanate battery lto battery cell
● Our super Li-ion battery adopts unique design of explosion-proof valves to replaces explosion-proof lines in traditional lithium battery, which removes the potential risks of explosion and catching fire in case of any accident.
● We abandon the traditional process of welding between electrodes and cap by leading 2 poles in the same direction after their reverting with the films. In this way, the probability of empty solder and internal short-circuit is effectively reduced, thus enhancing the reliability and decreasing the impedance of the battery. Besides, the leading poles could be soldered on special PCB directly, to reduce the impedance of battery pack by saving process of spot welding.
Product parameters
Model Number |
LTO1030 |
Battery Size |
10300 |
Place of Origin |
Guangdong,China |
Weight |
4.7g |
The charging ratio |
20C |
The discharge rate |
20C |
Product name |
1030 LithiumTitanate Battery |
Cycle life |
>32000 times |
Voltage |
2.4V |
Charging and discharging rate |
1-40c |
Application |
Solar Energy Storage Systems |
Certificate |
CE/RoHS/UN38.3/MSDS |
Warranty |
1 Year |
Work temperature |
-40℃to 75℃ |
Self discharge |
<3%/year |
Weight |
4.7g |
Application
Storage Type: Put in cool dry place
Anode Material: Other
Application: Toys, Home Appliances, Consumer Electronics, Electric Power Systems
Characteristic
◉ Revolutionary explosion-proof design, Excellent Safety Performance, Can be used without BMS, no leakage, no heavy metal, Fast charge and discharge rate, Distinguished performance in High and Low temperature, Super long cycle life, Cost-effective;
◉ High consistency, Stable charge and discharge, Rate battery;
◉ Operating temperature range: -40~75 degree
◉ Working rate: 1~40C
◉ Cycle Life: 0.5C>9000 times, 1C>6000 timesg
