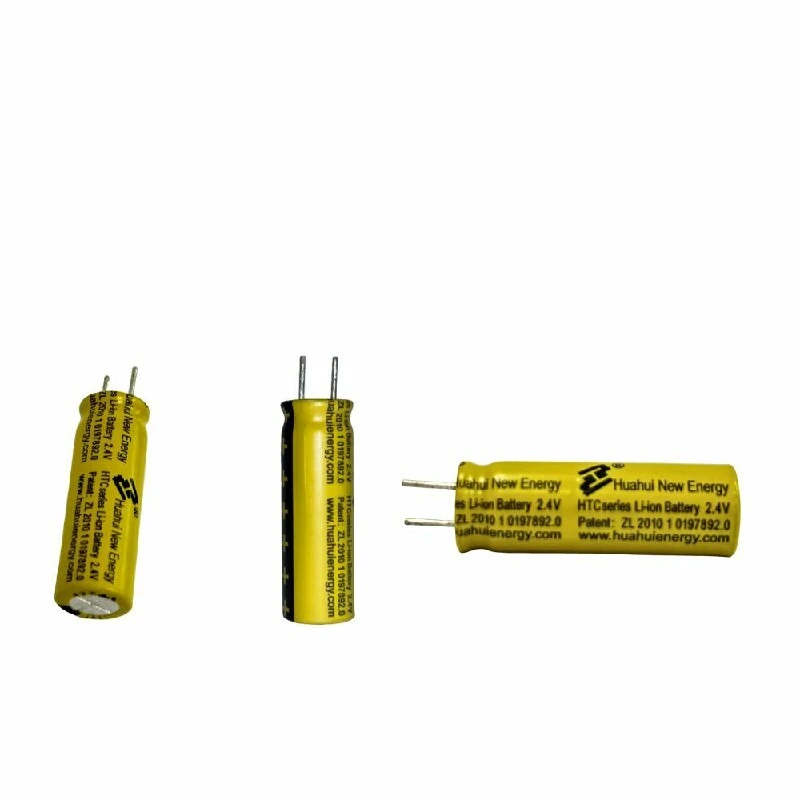

HTC1030 lto titanate battery

Huahui Energy HTC series batteries are high rate lithium titanate batteries.  HTC means High rate Titanate Cell.

This capacitive lithium titanate battery is very safe and can work normally in the event of a short circuit or puncture, without catching fire or exploding.

This battery can quickly charge and discharge.  It has a long lifespan, low self discharge, high specific energy, wide operating temperature, and can work in the range of -30 to 75 degrees.



Battery size: 10mm diameter, 30mm height.

Battery applications: Replace supercapacitors, replace nickel batteries for fast charging, smart meters, smart water meters, gateway products.

    oops...!

    no product data.

    Go to homepage

    Product parameters

    Item

    General Parameter

    Remark

    Rated Capacity

    Typical

    100mAh

    Standard discharge  after
    Standard charge

    Minimum

    90mAh

    Nominal Voltage

    2.4V

    Mean Operation Voltage

    Internal Impedance

    ≤100m Q

    Charged to about 70%of capacity

    Standard charge

    Constant Current 100mA
    end Voltage 2.8V
    1mA cut-off

    Charge time:Approx 1.5h

    Standard discharge

    Constant current 100mA
    end voltage 1.5V



    Fast charge

    Constant Current 200mA
    endVoltage 2.8V
    1mA cut-off

    Charge time:Approx 0.8h

    Maximum Continuous
    Discharge Current

    1000mA



    Operation Temperature Range

    Charge  :0~40℃

    60±25%R.H.
    Bare Cell

    Discharge   :-20~70℃

    Storage Temperature Range

    Less than 1 year:-10~20℃

    60±25%R.H.
    at the shipment state

    less than 3 months:-10~45℃

    Read More

    Battery applications

    Replace supercapacitors, replace nickel batteries for fast charging, smart meters, smart water meters, gateway products.
