Huahui Energy produces custom lithium battery with big rate and good consistency. Make every time use energy more cost effective.

HTC40120 Super capacitive lithium titanate battery 1
HTC40120 Super capacitive lithium titanate battery 2
HTC40120 Super capacitive lithium titanate battery 1
HTC40120 Super capacitive lithium titanate battery 2

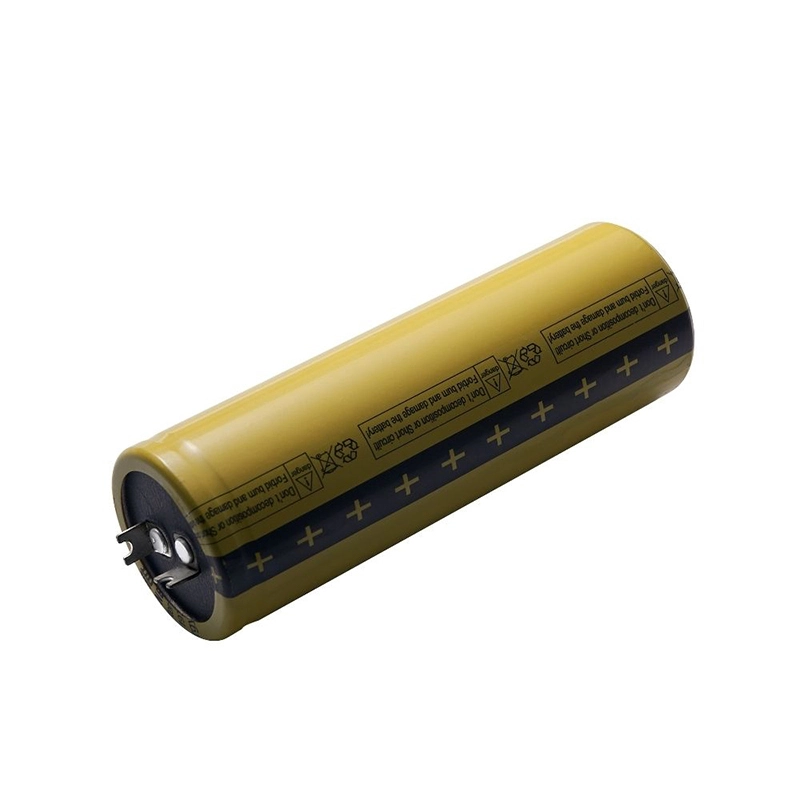

HTC40120 Super capacitive lithium titanate battery

● Huahui Energy HTC series batteries are high rate lithium titanate batteries.  HTC means High rate Titanate Cell.

HTC40120 Super capacitive lithium titanate battery can be used in -30 Celsius degree temperature and relative high temperature.

The positive and negative pins of this battery are led out from the same direction, and the twisted angle design makes it very easy to combine this battery into battery packs.

This battery has a very long cycle life, good safety performance(There will be no fire or explosion in case of puncture or short circuit), and high consistency.



Battery size: 40mm diameter, 120mm height.

Battery capacity: 9Ah

Battery voltage: 2.4V

    oops...!

    no product data.

    Go to homepage

    Product parameters

    Item

    General Parameter

    Remark

    Rated Capacity

    Typical

    9Ah

    Standard discharge  after
    Standard charge

    Minimum

    8.8Ah

    Nominal Voltage

    2.4V

    Mean Operation Voltage

    Internal Impedance

    ≤10m Q

    Charged to about 70%of capacity

    Standard charge

      Constant Current 4.5A
    end Voltage 2.85V
    180mA cut-off

    Charge time:Approx 3.0h

    Standard discharge

    Constant current 4.5A
    end voltage 1.6V



    Fast charge

    Constant Current 9.0A
    end Voltage 2.85V
    180mA cut-off

    Charge time:Approx 3.0h

    Maximum Continuous
    Discharge Current

    36A



    Operation Temperature
    Range

    Charge   :-20~50℃

    60±25%R.H.
    Bare Cell

    Discharge   :-35~70℃

    Storage Temperature
    Range

    Less than 1 year:-10~20℃

    60±25%R.H.
    at the shipment state

    less than 3 months:-10~45℃

    Read More

    Product display

    Battery applications:

    Small and medium-sized energy storage equipment,

    Tunnel emergency lighting, Battery pack, IoT products, Vehicle safety box, Battery applications in extreme environments, etc
