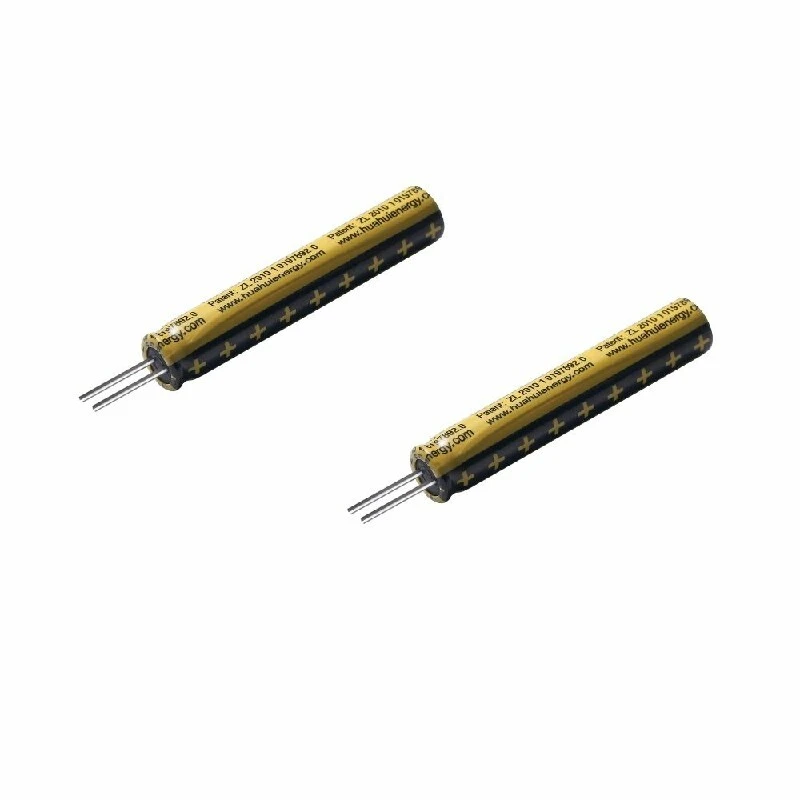

HTC6538 Super capacitive lithium titanate battery

HTC6538 Super capacitive lithium titanate battery:

● Huahui Energy HTC series batteries are high rate lithium titanate batteries. HTC means High rate Titanate Cell.

● Lithium titanate batteries have good safety performance, long service life, good consistency, high discharge rate, and wide operating temperature. The working temperature of this battery is -30 to 75 Celsius degrees.



Battery size:

● 6.5mm diameter, 38mm height.

Battery applications:

● Stylus pen, Portable wearable devices, Interphone, Products that require slender shaped batteries, Special remote control and Equipment used in extreme temperatures

    oops...!

    no product data.

    Go to homepage

    Product parameters

    Item

    General Parameter

    Remark

    Rated Capacity

    Typical

    40mAh

    Standard discharge  after
    Standard charge

    Minimum

    38mAh

    Nominal Voltage

    2.4V

    Mean Operation Voltage

    Internal Impedance

    ≤150m Q

    Charged to about 70%of capacity

    Standard charge

    Constant Current 40mA
    end Voltage 2.8V
    1mA cut-off

    Charge time:Approx 1.5h

    Standard discharge

    Constant current 40mA
    end voltage 1.5V



    Fast charge

    Constant Current 80mA
    end Voltage 2.8V
    1mA cut-off

    Charge time:Approx 0.8h

    Maximum Continuous
    Discharge Current

    800mA



    Operation Temperature Range

    Charge  :0~40℃

    60±25%R.H.
    Bare Cell

    Discharge   :-10~70℃

    Storage Temperature Range

    Less than 1 year:-10~20℃

    60±25%R.H.
    at the shipment state

    less than 3 months:-10~45℃
