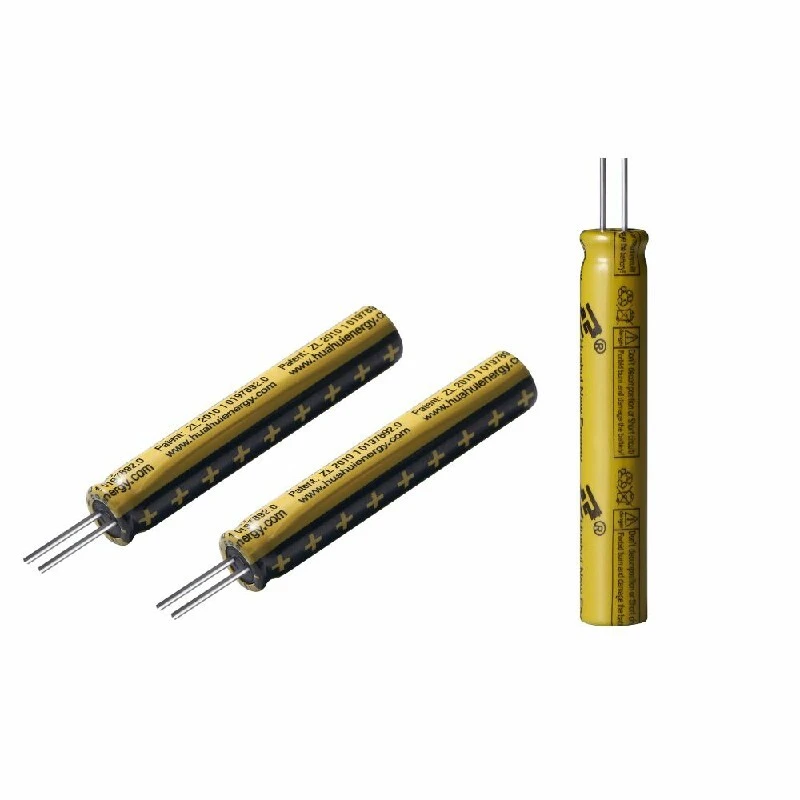

HTC7240 Super capacitive lithium titanate battery:
● Huahui Energy HTC series batteries are high rate lithium titanate batteries. HTC means High rate Titanate Cell.
● Lithium titanate batteries have good safety performance, long service life, good consistency, high discharge rate, and wide operating temperature. The working temperature of this battery is -30 to 75 Celsius degrees.
Battery size:
● 7.2mm diameter, 40mm height.
Battery applications:
● Stylus pen, Portable wearable devices, Interphone, Products that require slender shaped batteries, Special remote control and Equipment used in extreme temperatures
Product parameters
Item |
General Parameter |
Remark |
|
Rated Capacity |
Typical |
60mAh |
Standard discharge after |
Minimum |
55mAh |
||
Nominal Voltage |
2.4V |
Mean Operation Voltage |
|
Internal Impedance |
≤120m Ω |
Charged to about 70%of capacity |
|
Standard charge |
Constant Current 60mA |
Charge time:Approx 1.5h |
|
Standard discharge |
Constant current 60mA |
|
|
Fast charge |
Constant Current 180mA |
Charge time:Approx 0.5h |
|
Maximum Continuous |
1200 mA |
|
|
Operation Temperature Range |
Charge :0~40℃ |
60±25%R.H. |
|
Discharge :-10~70℃ |
|||
Storage Temperature Range |
Less than 1 year:-10~20℃ |
60±25%R.H. |
|
less than 3 months:-10~45℃ |
